Product Name: iNTRAXX Track System
Ferno Product Code: ITX-04800*
The iNTRAXX track system attaches to vehicle walls, ceilings and bench tops. Manufactured from anodised extruded aluminium, the track is designed with two parallel load-bearing channels with drop-zones and locking positions built-in along its length as well as fluid drainage capabilities.

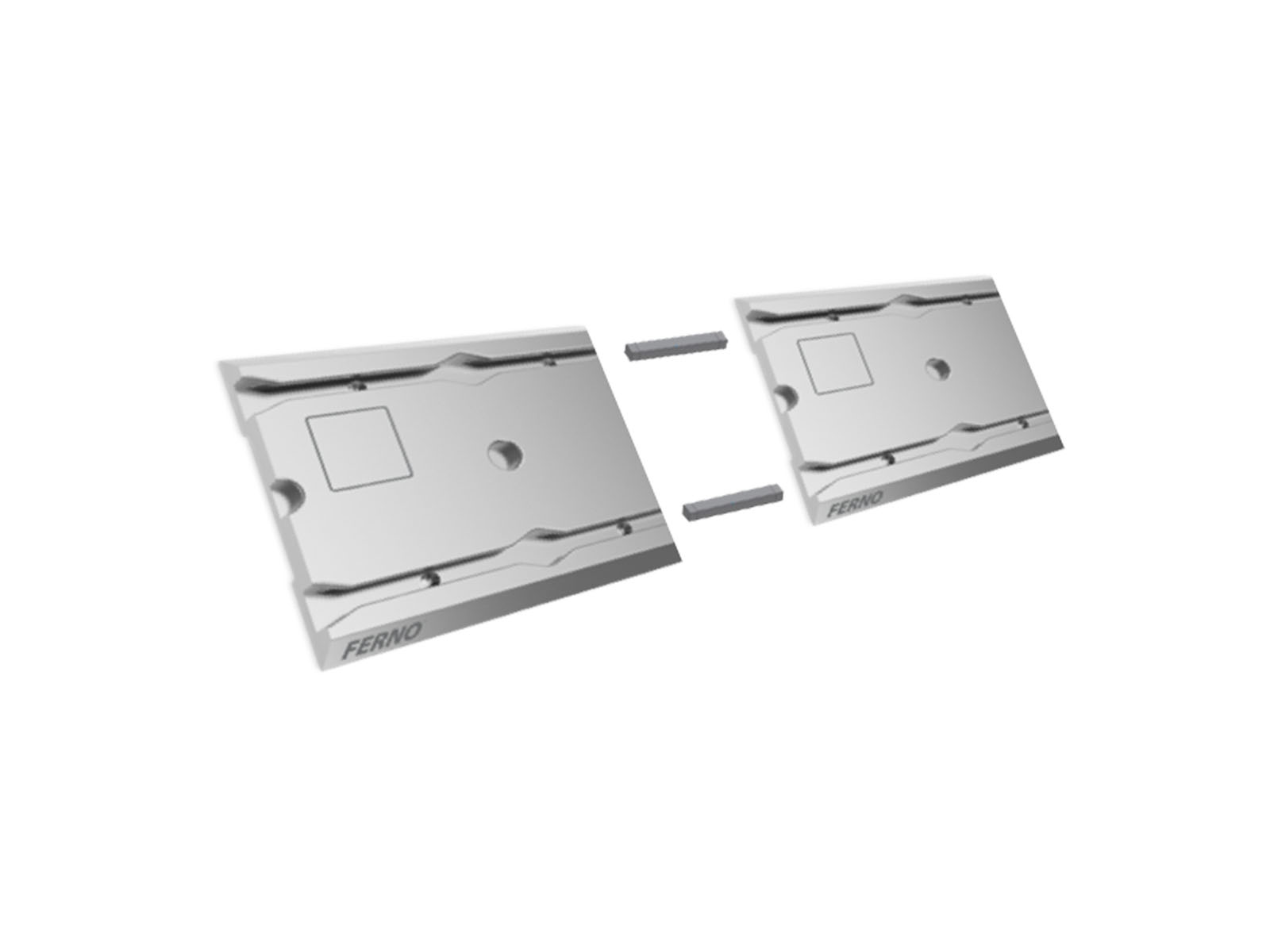

Multiple tracks can be joined together end-to end to create longer working sections to suit configuration needs of the ambulance and other vehicle applications. Six variations of track cater for all installation scenarios be it on vehicle walls, ceilings or bench tops, and for different equipment mounting requirements.
|
Part # |
Track Type |
Description |
|---|---|---|
|

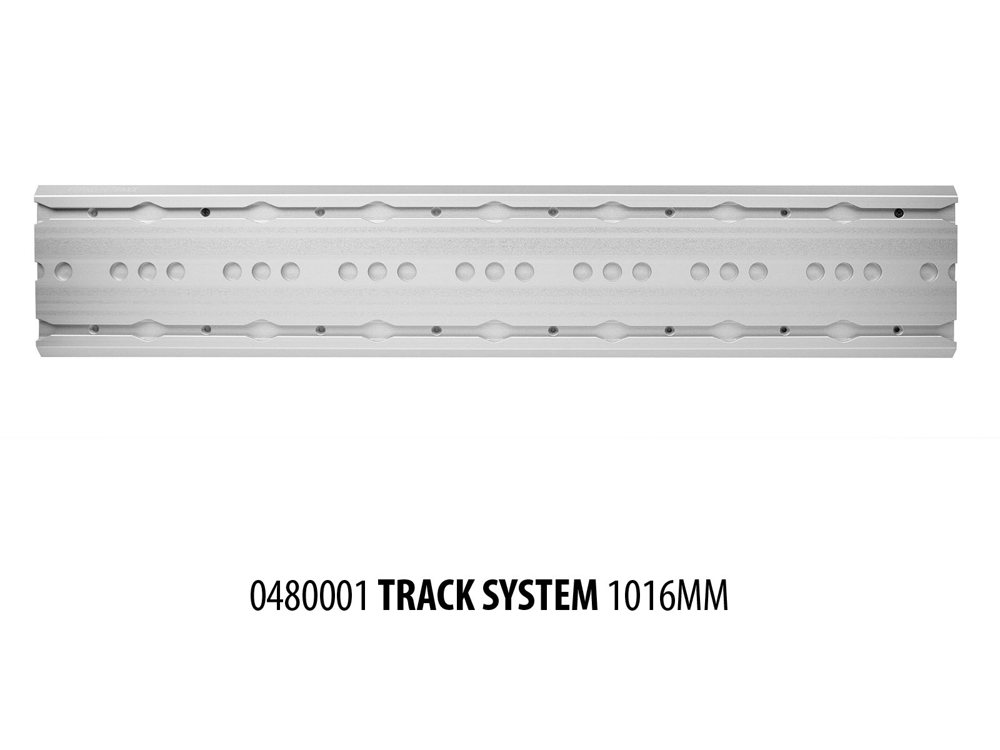

0480001 |
1016mm |
The most commonly used track for wall and bench top applications. This track may be cut to size. |

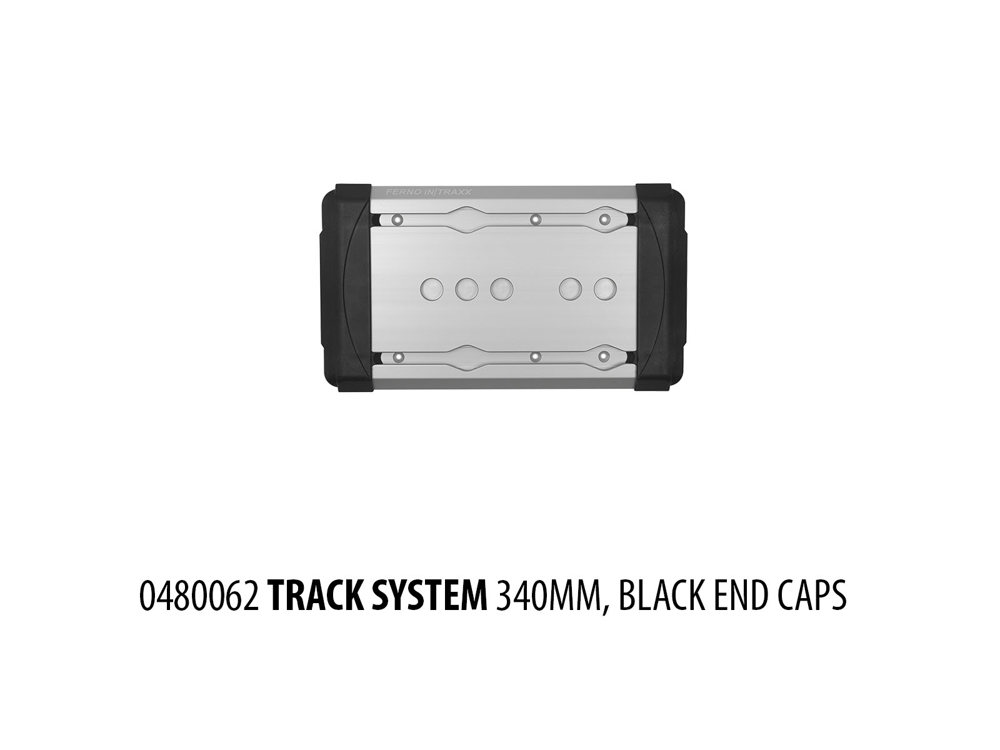

| 0480062 |
340mm Black End Cap |

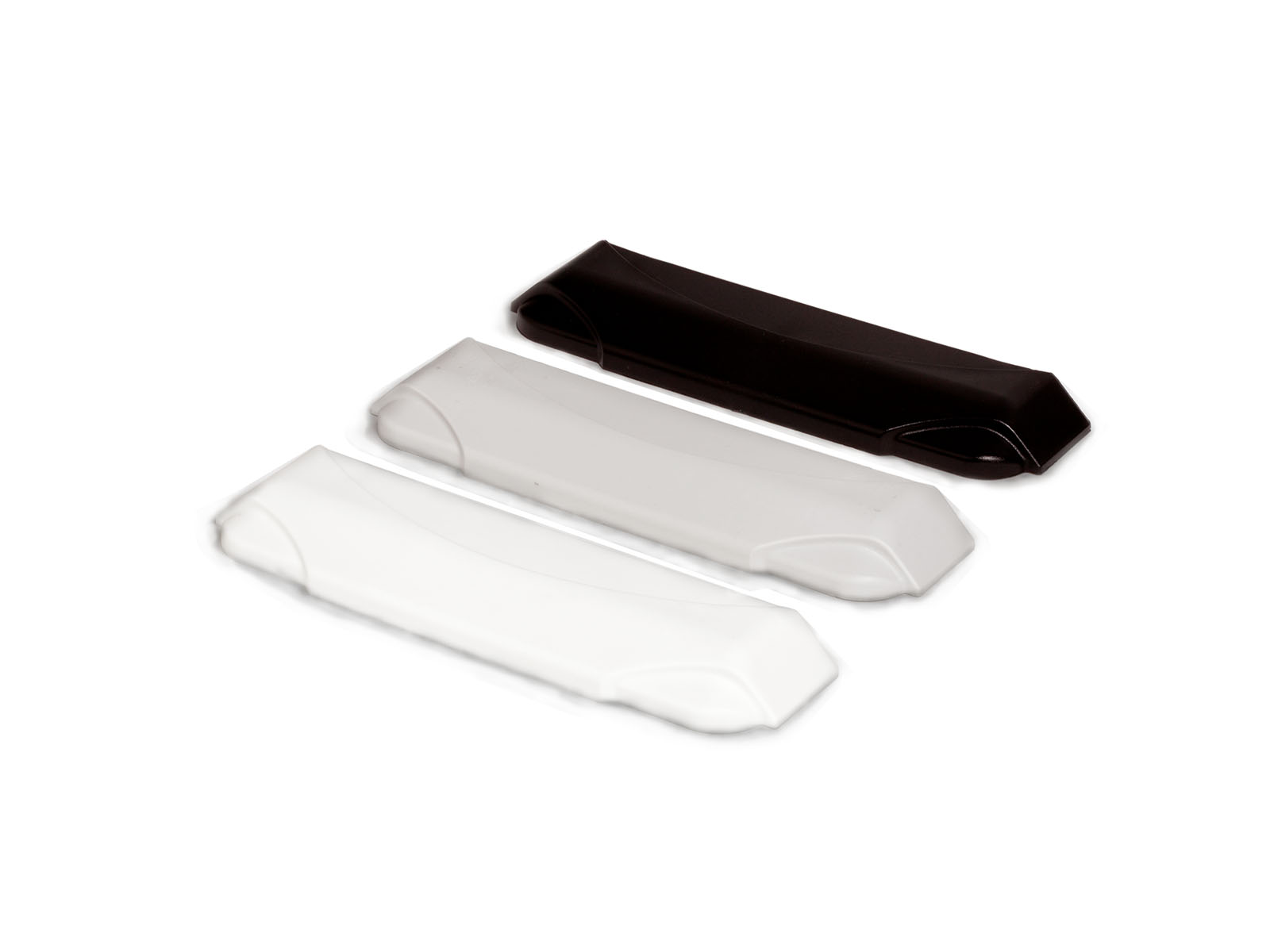

This short track is commonly used for mounting single pieces of equipment. Supplied with black end caps. This track is suitable for wall and bench top applications. |

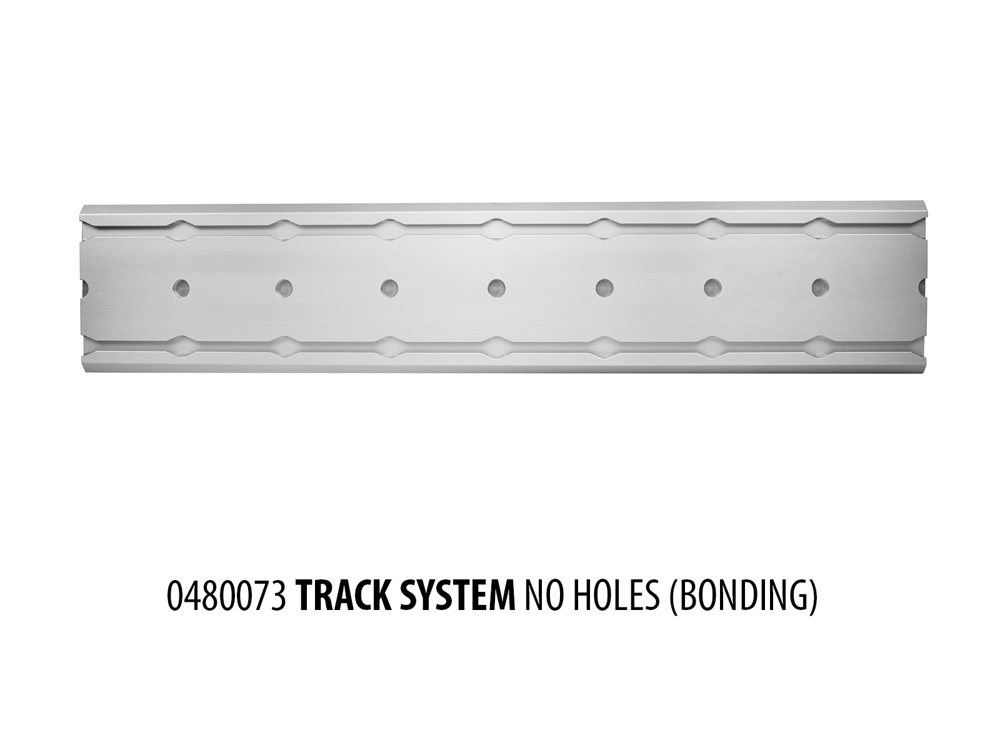

| 0480073 | Bonding | This track is used for bonding applications in situations where mounting surfaces may not be penetrated. Suitable for wall, ceiling and bench top applications. The bonding method remains the sole responsibility of the installation agent. |

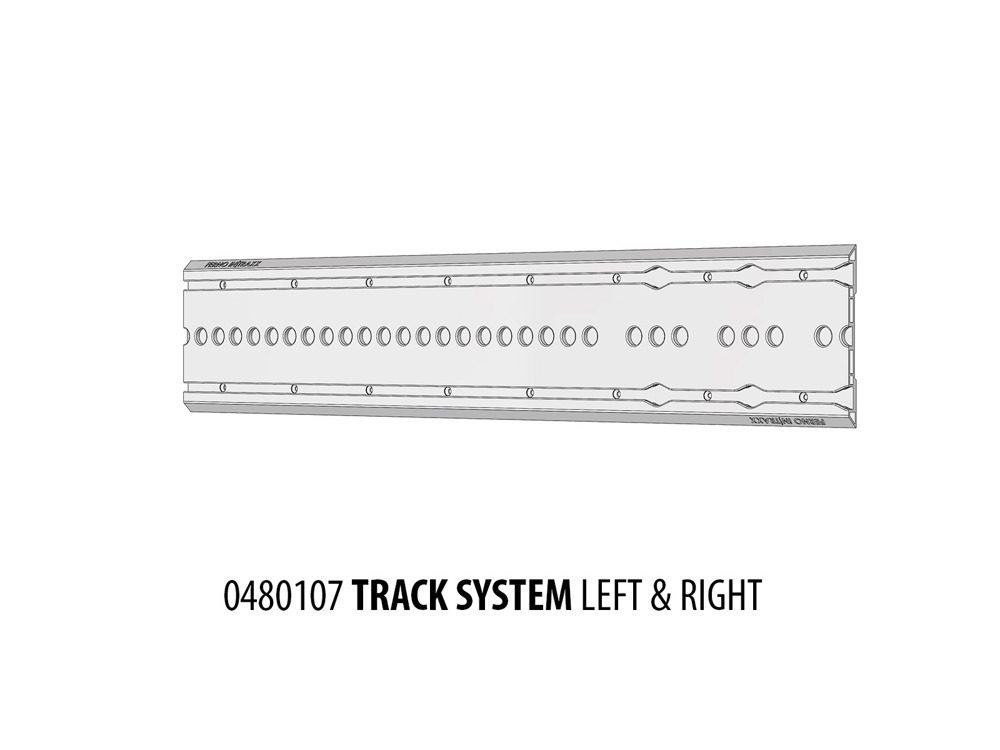

| 0480107 | Left & Right | This track features a single drop-in zone located on either the left or right side. Suitable for wall, ceiling and bench top applications. |

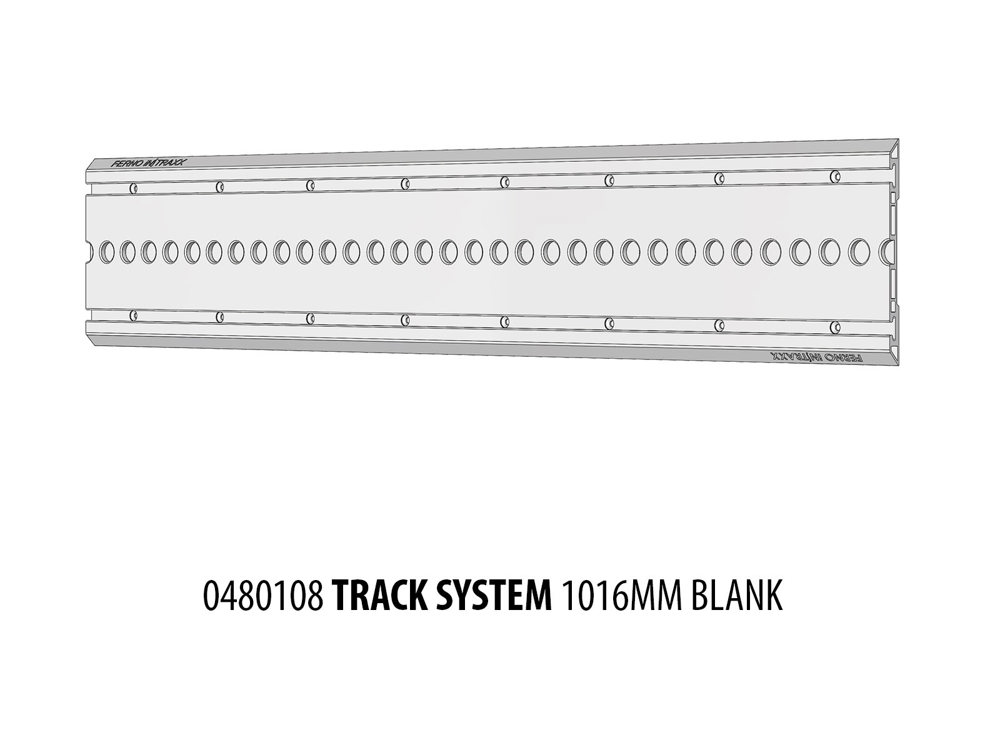

| 0480108 | Blank | This track has no drop-in zone and is joined to another track to extend the distance a mounted piece of equipment may be moved within the vehicle. Suitable for wall, ceiling and bench top use. |

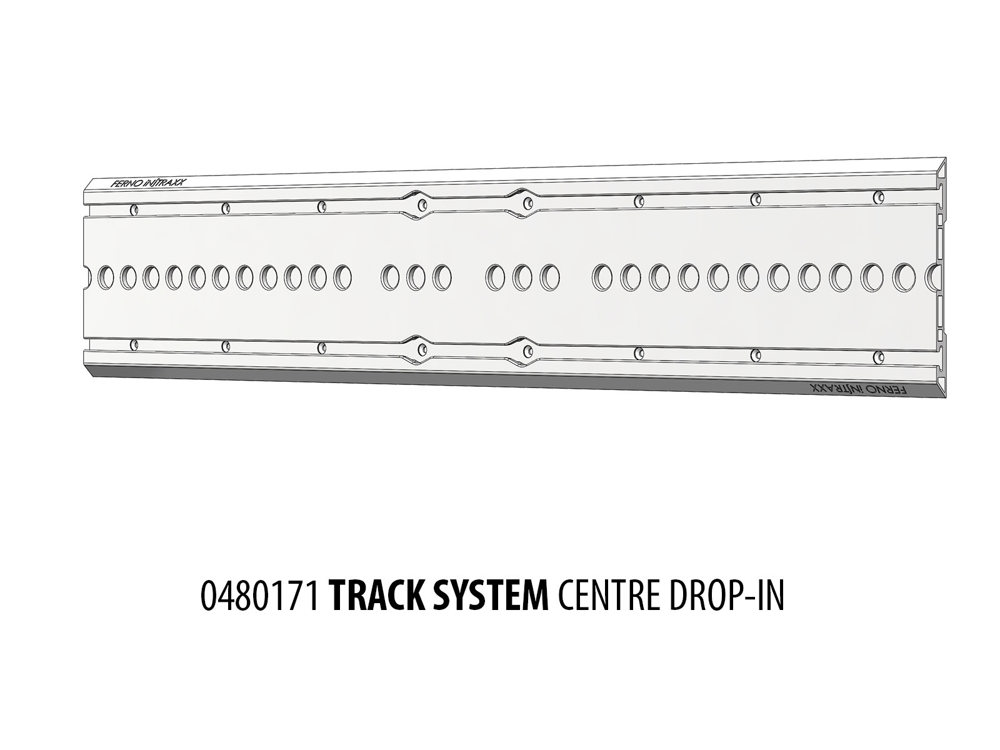

| 0480171 | Centre Drop-in | Features a single drop-in zone located in the centre of the track. This allows more flexibility and choice when designing your ambulance. Suitable for wall, ceiling and bench top applications. |
|
Part # |
Track Type |
Width x |
Weight |
Load |
Crash Tested |
|---|---|---|---|---|---|
|
0480001 |
1016mm |
189 x 12.7 x 1016 |
3.4 kg |
25 kg |
10g, 22g, 26g |
| 0480062 | 340mm | 193 x 17 x 340 | 1.2 kg | 25 kg | 10g, 22g, 26g |
| 0480073 | Bonding | 189 x 12.7 x 1016 | 3.4 kg | 25 kg | 10g, 22g, 26g |
| 0480107 | Left & Right | 189 x 12.7 x 1016 | 3.4 kg | 100 kg | 10g, 22g, 26g |
| 0480108 | Blank | 189 x 12.7 x 1016 | 3.4 kg | 100 kg | 10g, 22g, 26g |
| 0480171 | Centre Drop-In | 189 x 12.7 x 1016 | 3.4 kg | 100 kg | 10g, 22g, 26g |
To learn more about how the different iNTRAXX components come together to form a complete in-vehicle system, read the Ferno Focus: iNTRAXX & Aviation booklet.
