Product Name: iNTRAXX Suction Mounts
Ferno Product Code: ITX-04800* Suction Mounts
iNTRAXX offers model-specific suction unit mounts so equipment can be positioned and re-positioned within the ambulance where it is most needed, while remaining securely fastened to the vehicle in the event of a crash or hard manoeuvre.
Suction Unit Mount Options
|
Code |
Suction Unit |
Mount Type |
Weight |
|---|---|---|---|
|
0480042 |
Laerdal | Wall * | 3kg |
| 0480043 | SSCOR | Wall | 1.2kg |

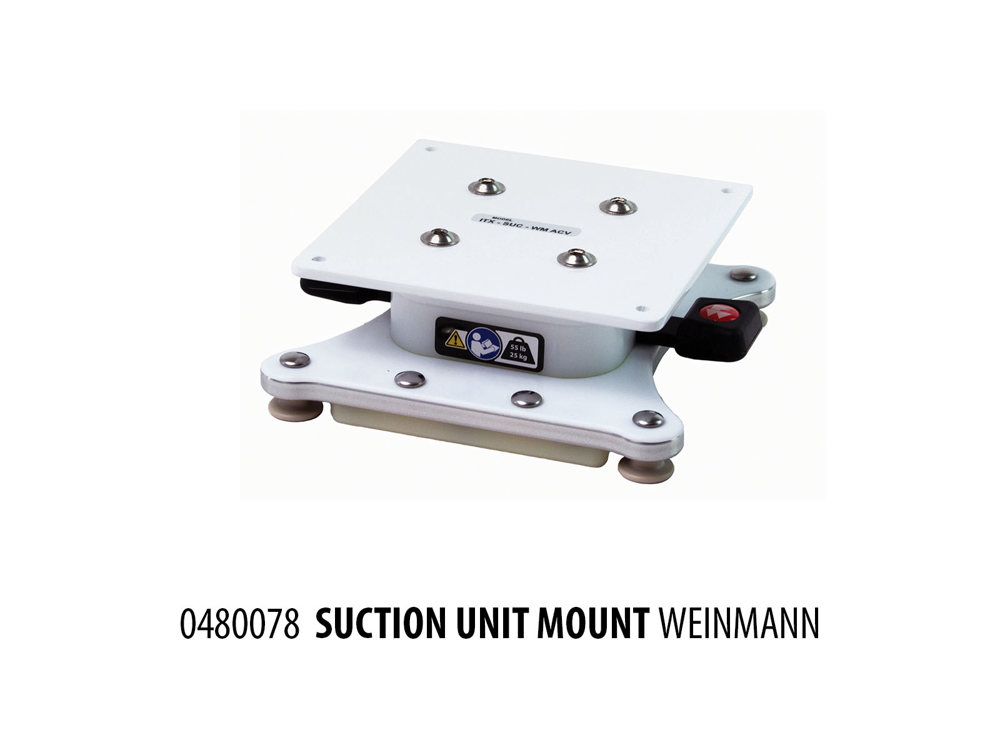

| 0480078 | Weinmann | Wall | 1.7kg |
| 0480124 | Hersill V7 Plus B Emergency | Wall | 1.05kg |

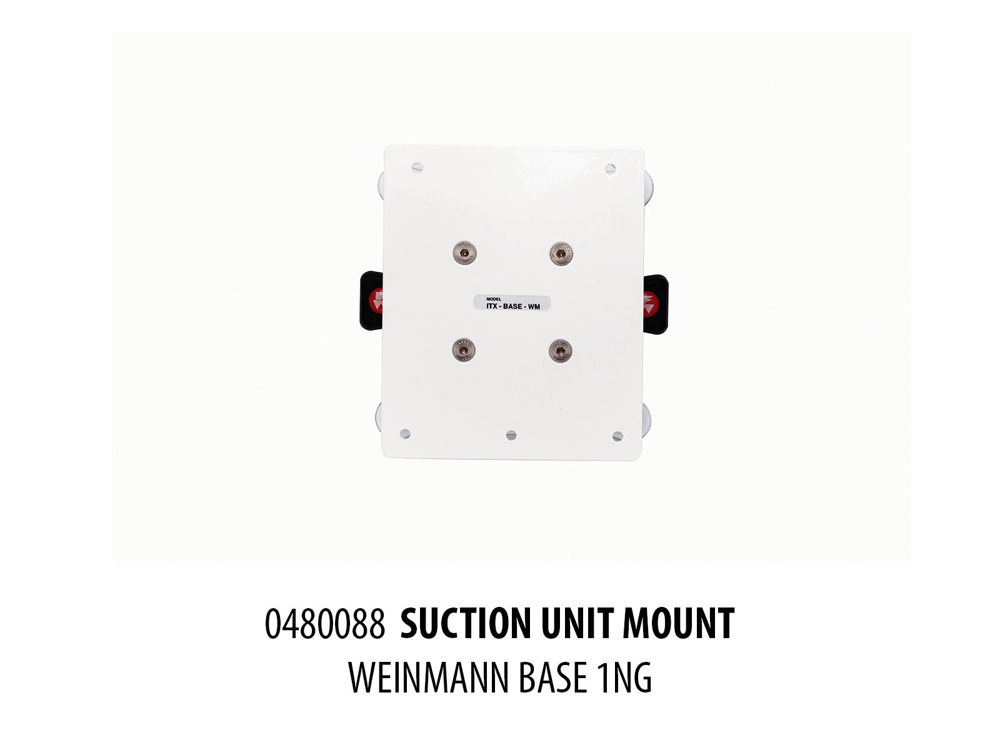

| 0480088 | Weinmann Base 1NG | Wall | 1.25kg |
| 0480169 | SAM e.p.s. (MGE) | Wall ** | 2.7kg |
| 0480199 | Combo Adaptor Mount | Wall | 1.25kg |
| 0480048 | LCSU4 Suction Mount | Wall | 3.63kg |
* Requires the LSU wall bracket (sold separately)
** Adaptor bracket attaches to SafeMount 0480146 (sold separately)
Not all equipment mounts are illustrated. All mounts, with the exception of the Hamilton mounts, are crash tested to 26g.
|

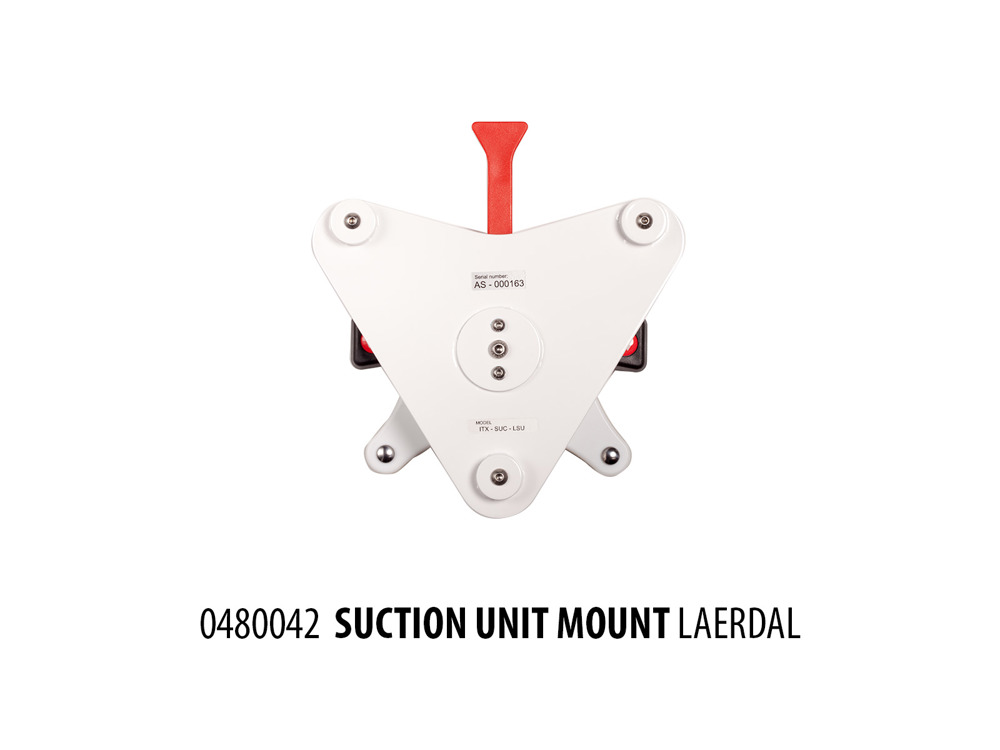

Laerdal Suction |
Metric |
Imperial |
|---|---|---|
|
Part Number |
0480042 |
|
| Dimensions W x D x L | 173 x 57 x 190 mm | 6.8 x 2.2 x 7.5 in |
| Weight | 3 kg | 6.6 lb |
| Crash Tested | 10g, 22g, 26g | |
| Notes | Requires the LSU Wall Bracket with or without power cord. |
|
|

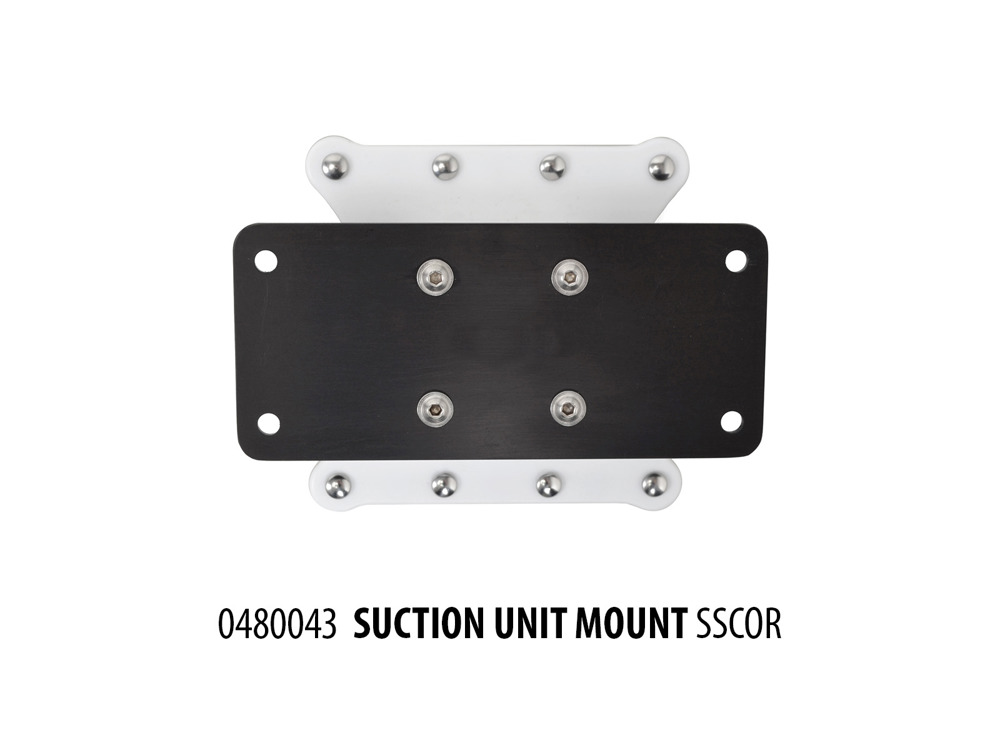

SSCOR Suction |
Metric |
Imperial |
|---|---|---|
|
Part Number |
0480043 |
|
| Dimensions W x D x L | 151 x 60 x 200 mm | 5.9 x 2.4 x 7.9 in |
| Weight | 1.09 kg | 2.4 lb |
| Crash Tested | 10g, 22g, 26g | |
| Notes | ||
|

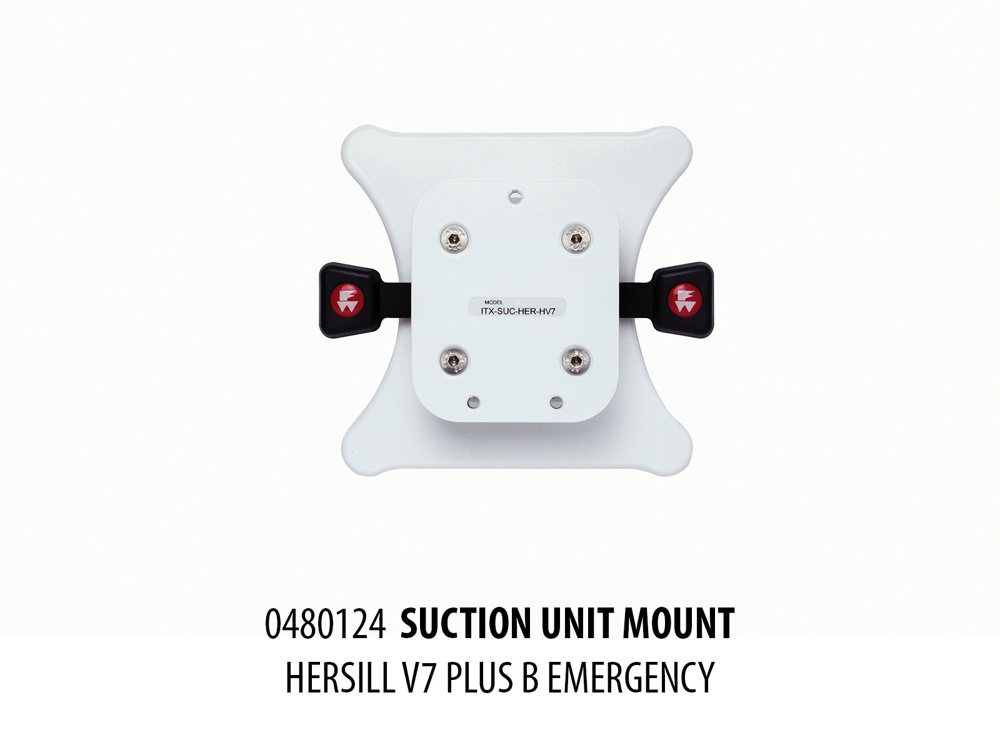

Hersill V7 Plus B |
Metric |
Imperial |
|---|---|---|
|
Part Number |
0480124 |
|
| Dimensions W x D x L | 151 x 48 x 167 mm | 5.9 x 1.9 x 6.6 in |
| Weight | 1.05 kg | 2.3 lb |
| Crash Tested | 10g, 22g, 26g | |
| Notes | Supplied complete with SafeMount. Follow fitting instructions. Device mountings sold separately. |
|
|
Combo Adaptor |
Metric |
Imperial |
|---|---|---|
|
Part Number |
0480042 |
|
| Dimensions W x D x L | 163 x 57 x 167 mm | 6.4 x 2.2 x 6.6 in |
| Weight | 1.25 kg | 2.8 lb |
| Crash Tested | 10g, 22g, 26g | |
| Notes | Combo Adaptor plate mounts to Medumat Ventilator, Weinmann Suction Unit, Weinmann Base 1NG Suction Unit. Meets AS/NZS 4535:1999; FMVS/CAAS; CEN 1789; SAE J3042. Supplied with required bolts and a SafeMount. Device mountings sold separately. Follow fitting instructions. |
|
|

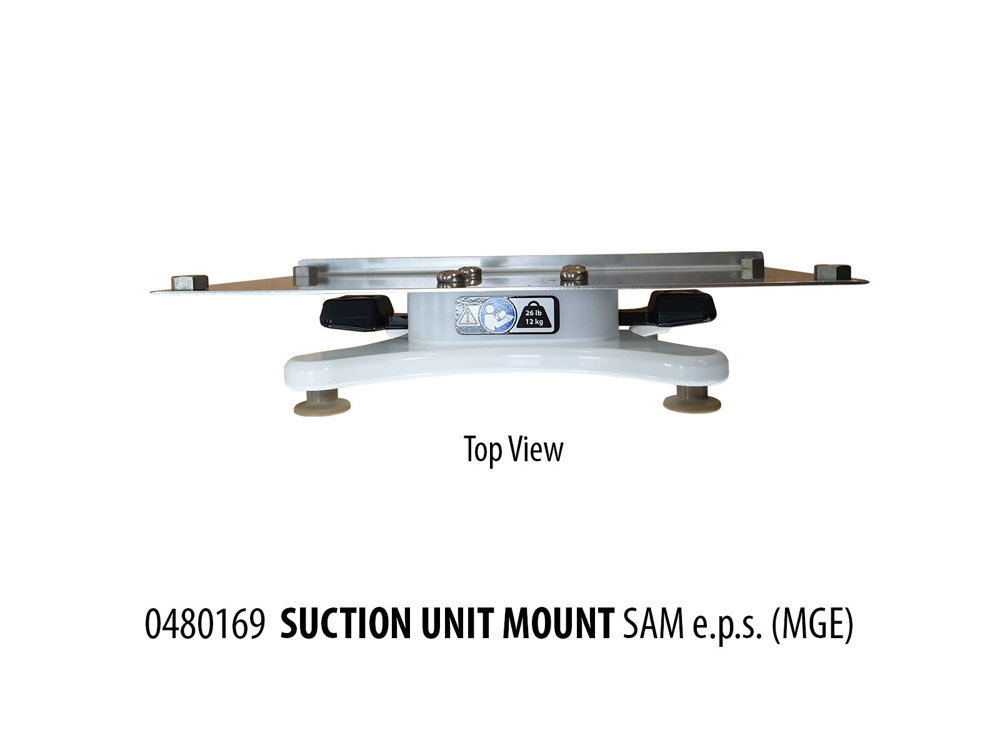

SAM eps (MGE) |
Metric |
Imperial |
|---|---|---|
|
Part Number |
0480169 |
|
| Dimensions W x D x L | 151 x 60 x 200 mm | 5.9 x 2.4 x 7.9 in |
| Weight | 1.09 kg | 2.4 lb |
| Crash Tested | 10g, 22g, 26g | |
| Notes | Adaptor Bracket supplied with necessary fixings. Adaptor can only be used in conjunctiono with the 0480146 SafeMount, sold separately. Refer to separate operator's manual. |
|
|

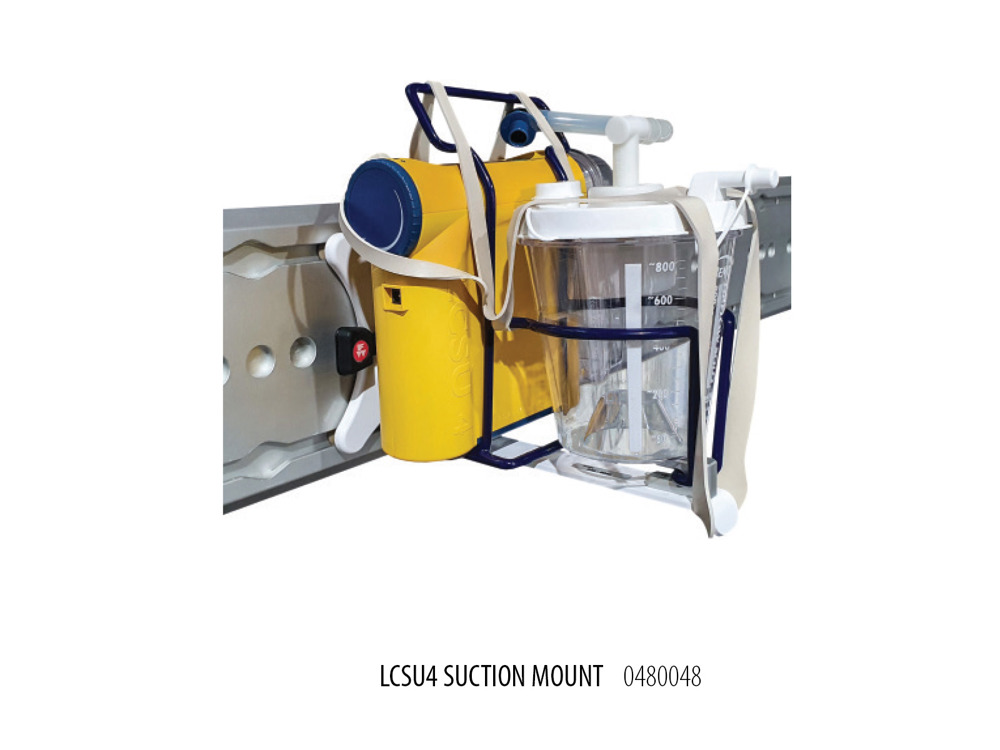

Laerdal Suction |
Metric |
Imperial |
|---|---|---|
|
Part Number |
0480048 |
|
| Dimensions W x D x L | 254 x 255 x 176 mm | 10 x 10.03 x 6.29 in |
| Weight | 3.63 kg | 8.02 lb |
| Crash Tested | 10g, 22g, 26g | |
| Notes | iNTRAXX wall mount for the LCSU4 suction unit. The same mount is compatible with either the standard LCSU4 canister, or with the additional 800ml canister. |
|
