Product Name: Hi-Safe RA10 Permanent Anchor*
Ferno Product Code: HS-RA10 CORR, HS-RA10 TRIM and HS-RA10 FLAT





The Hi-Safe RA10 Anchor range is available in an array of base plates providing the user with an easy to install, permanently mounted anchor system for most roof structures with steel purlins.


The anchor attachment point sits high and proud providing the user with good clearance options. Each Hi-Safe RA10 Anchor has an individually identified serial number.

Features

  • Full stainless steel construction
  • Individually identified serial number
  • M12 eye bolt 120 mm
  • Easy installation
  • Supplied with purlin setting block and string applicator


Hi-Safe RA10 Purlin Anchor Models

Code

Description

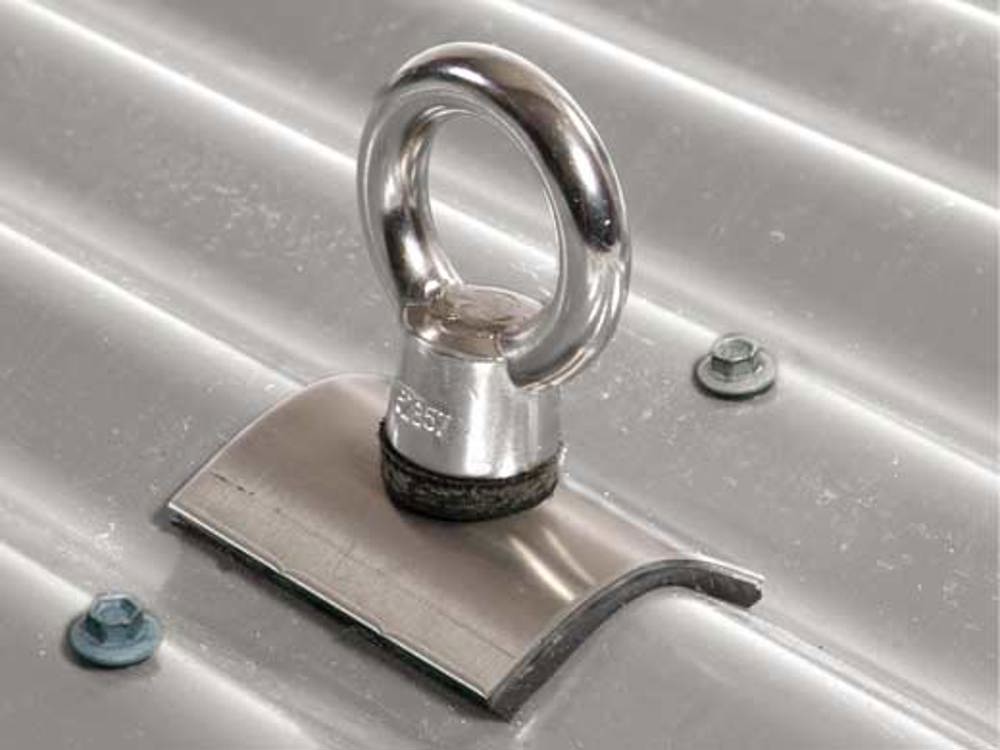

HS-RA10 CORR

Corrugated Roof Profile

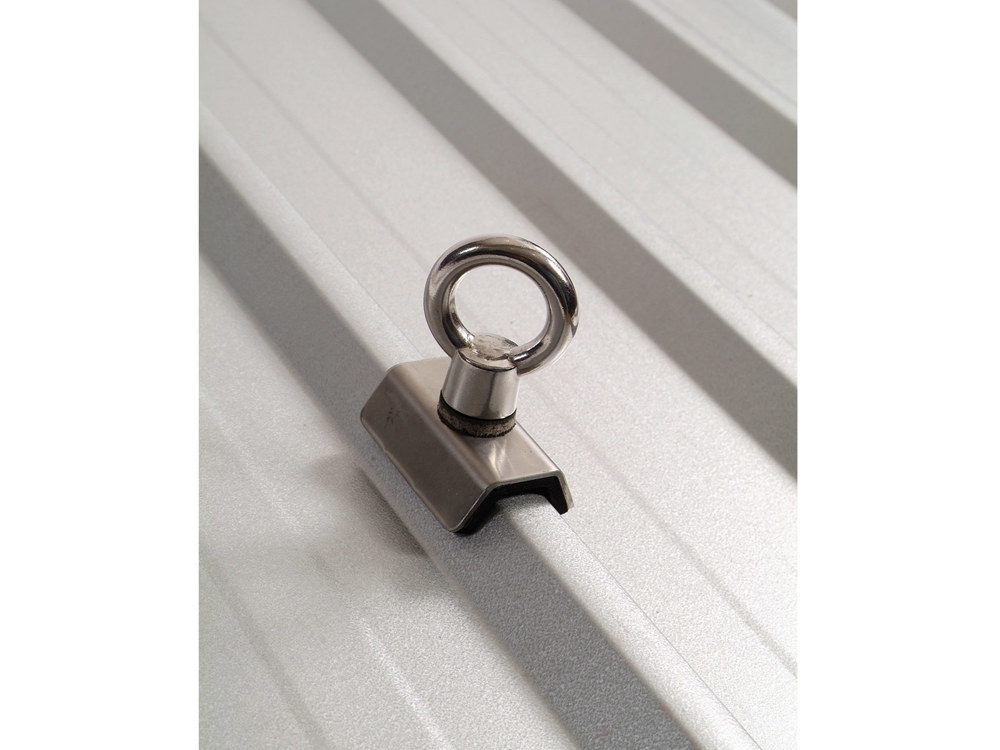

HS-RA10 TRIM Trim Deck Profile

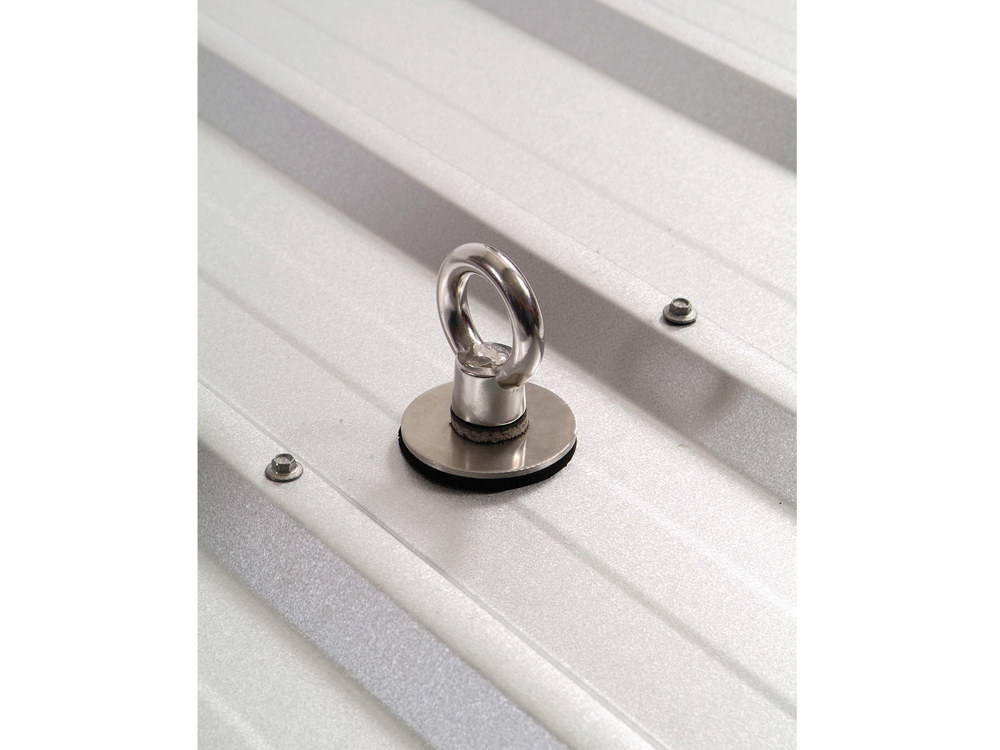

HS-RA10 FLAT Flat Profile

*Must be used with a personal energy absorber and lanyard system. Any roof structure must be inspected by a competent person and deemed strong enough to yield the required forces prior to application. If in doubt consult an engineer for clarification. The RA10 is suitable for steel purlins only. Do not install into timber.
