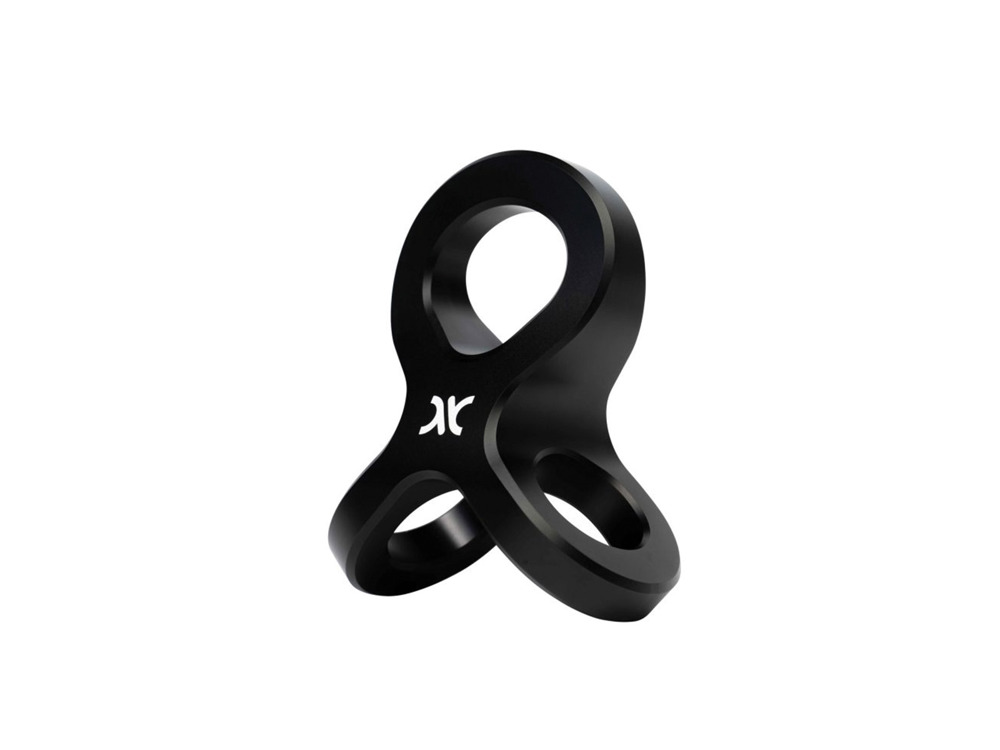

Product Name: CMC Squid Rig Plate
Ferno Product Code: CMC300020
The Squid is an innovative solution for twin tension rope systems and other load-sharing applications.
The Squid simplifies the technique of bringing two devices together for side-by-side operation. Its multi-planar design optimises device alignment, promotes smooth raising and lowering, and enables single operator control for better shared tension.
Features
- Multi-planar rigging plate with perpendicular attachment points
- Promotes smooth loading / unloading of connected hardware
- Allows components to move freely and orient towards the load
- Aligns secondary points for high strength and easy load sharing
- Supports a variety of connection methods for versatile rigging
- Strong, compact, and lightweight for multiple applications
| Specifications | |
|---|---|
| Height | 10.4 cm |
| Width | 8.4 cm |
| Depth | 5.1 cm |
| Weight | 240 g |
| Primary Hole Diameter | 3.6 cm |
| Secondary Hole Diameter | 2.7 cm |
| 3 Sigma MBS |
|
| Certifications |

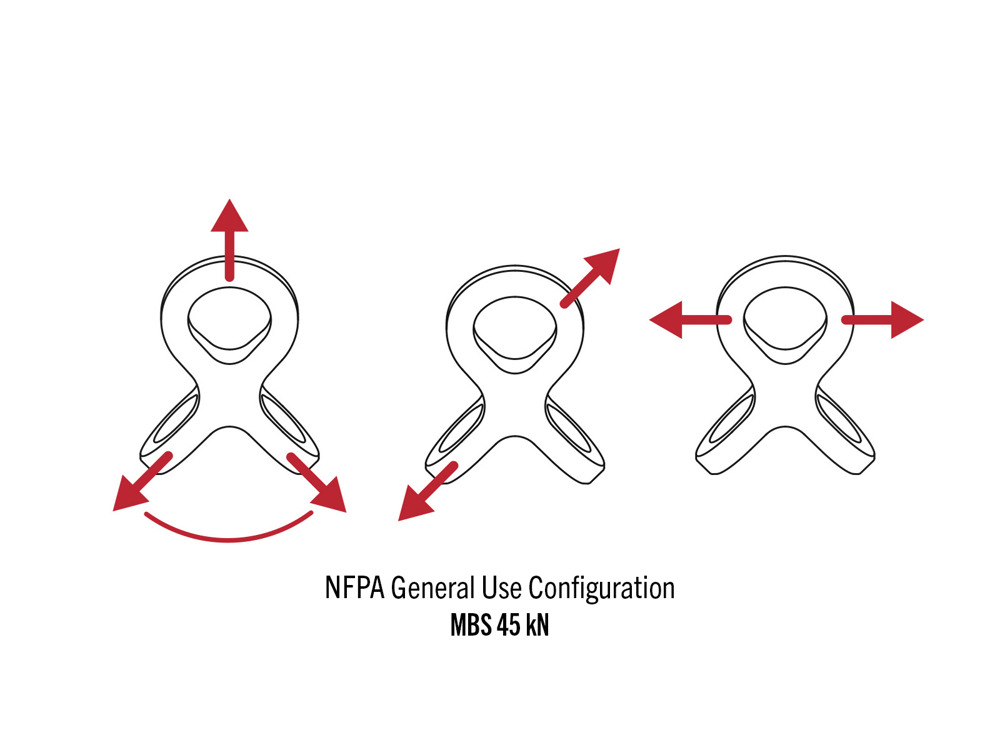

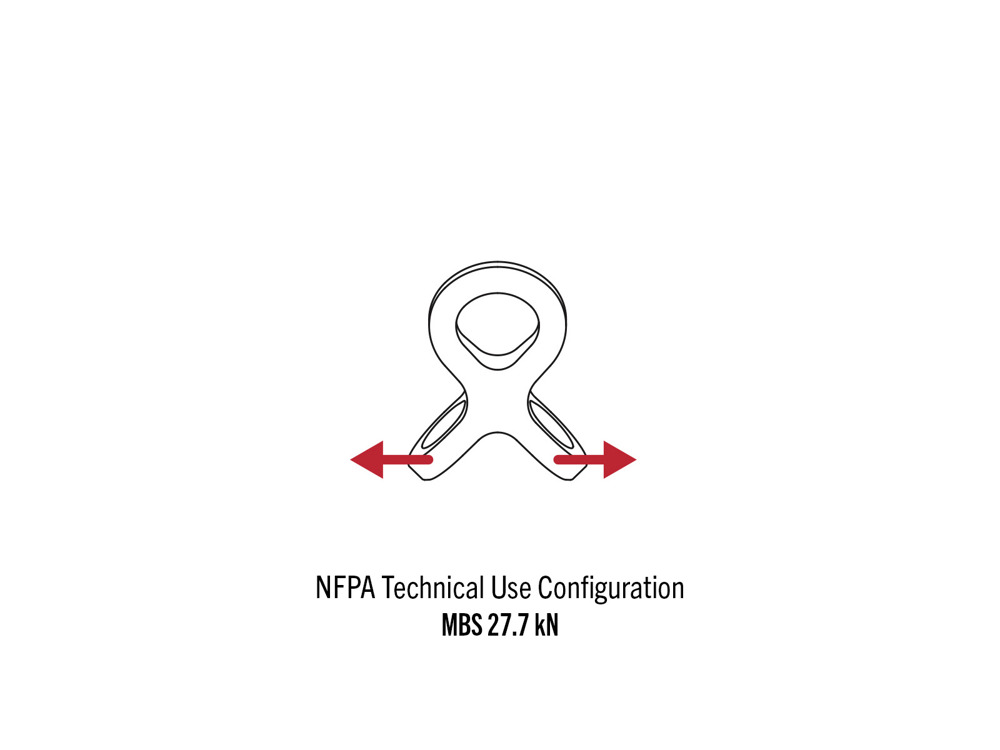

CE; PPE-R/RFU 11.114 Version 01 NFPA Technical Use NFPA General Use (Specific Configs) |
| Material | Aluminium |
View / Download: Squid Product Sheet
