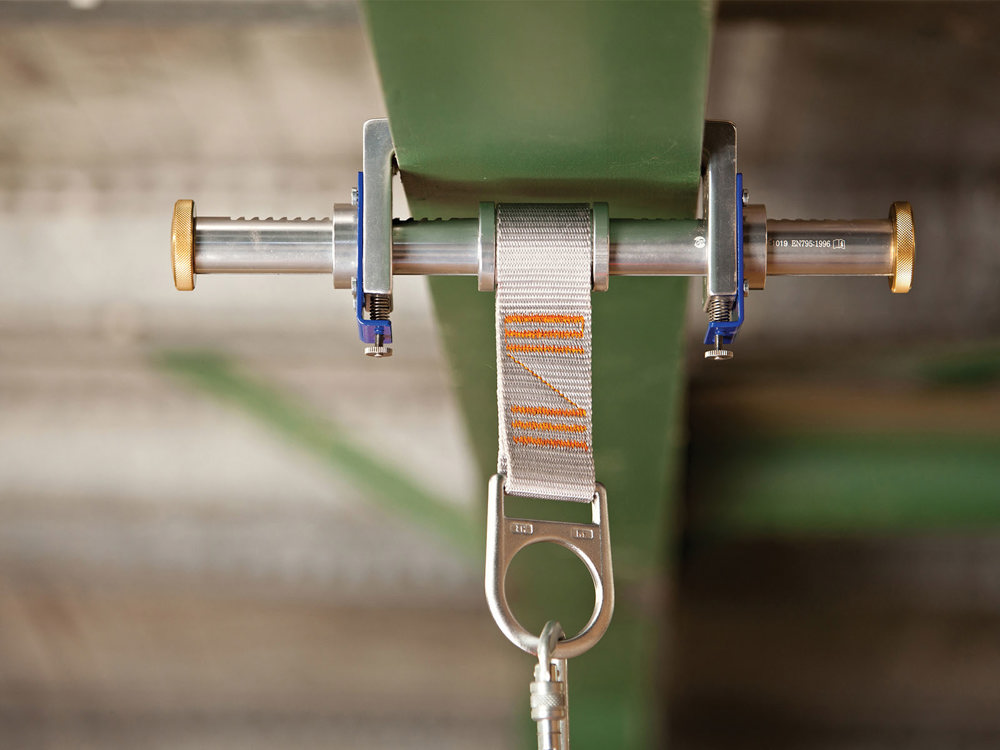

Product Name: Ferno Fixed “I” Beam Anchor FWE-YAA001
Ferno Product Code: FWE-YAA001
Ferno Fixed I Beam Anchor connects to a wide range of I and H beam flanges from 84 mm to 304 mm and up to 23 mm thickness.
Once attached, the I Beam Anchor provides a secure anchor point for safe work at heights. Manufactured from high grade anodised alloy and rated to 18 kN single person limited free fall arrest.
To be used with self-retracting lifeline or fall arrest lanyard only.
|
Specifications |
|
|---|---|
|
Load Bar Material |
Aluminium Alloy |
| Clamps with Roller | Aluminium Alloy |
| D-ring Material | Steel Alloy / Nickel Plating |
| End Screw Material | Aluminium Alloy |
| Webbing Material | Polyester |
| MBS | 18 kN |
| Weight | 2.2 kg |
- Meets standard: EN 795:2012/B
