Product Name: KASK ZENITH Arc Flash 1 and 2
Ferno Product Code: VKA WV100014; VKA WV100015

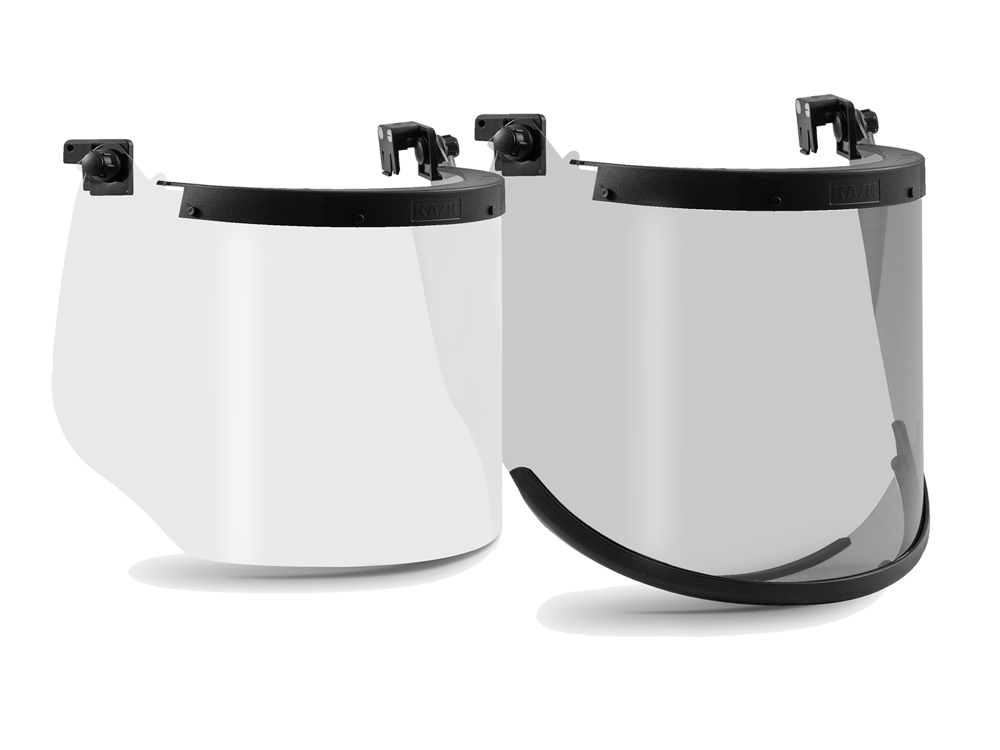

Arc Flash visors are an essential safety item for electrical workers to provide protection from potential arc flash hazards. Both models of the KASK Arc Flash Visor are designed to fit the Australian Standards certified Zenith safety helmet. Visors individually supplied with protective bags.

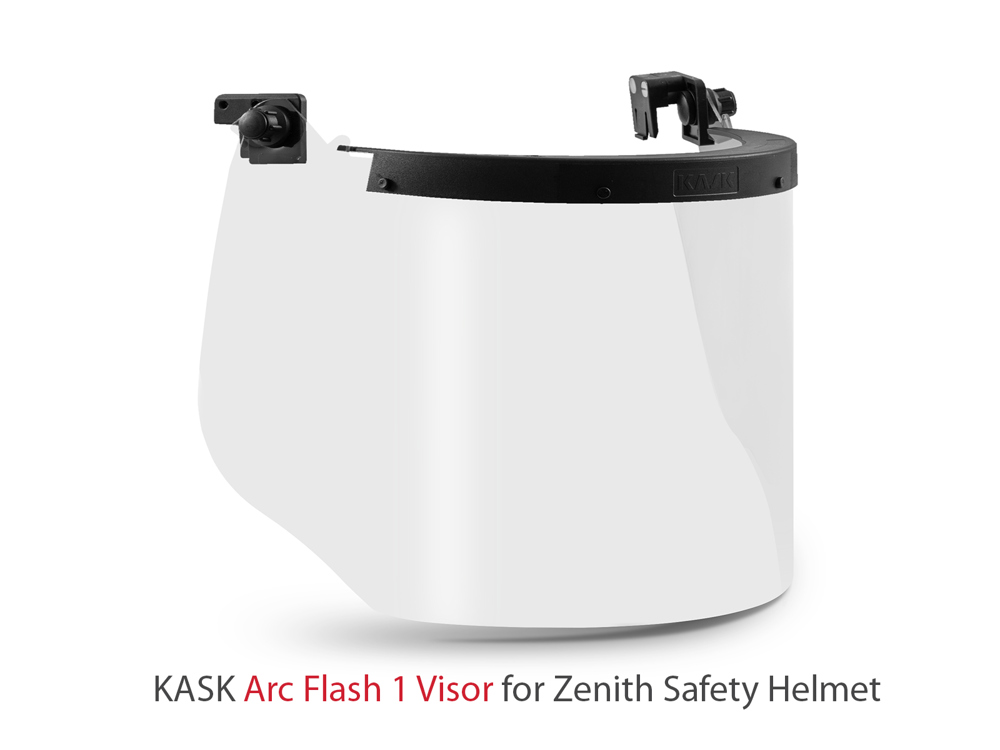

ARC FLASH 1 VISOR
When fitted to the Zenith helmet, the Arc Flash 1 Visor enables the wearer to work at, or in the vicinity of live parts. The Arc Flash 1 visor offers a high arc protection against thermal hazards and is suitable for use at electrical installations with a higher short-circut energy (up to WLBP = 168 kJ according to a risk assessment pursuant to German BGI/GUV-I 5188)

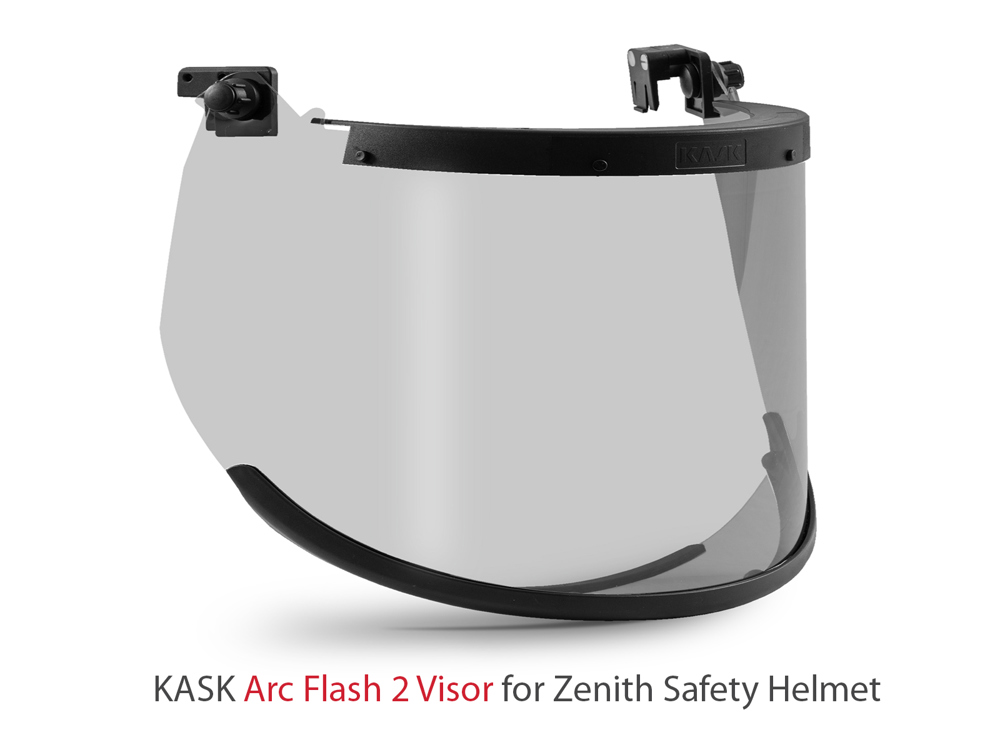

ARCH FLASH 2 VISOR
When used in conjunction with the Zenith safety helmet, the Arc Flash 2 visor allows the user to work at, or in the vicinity of live parts at electrical installations with a higher short-ciruit energy (up to WLBP = 320 kJ according to risk assessment pursuant to German BGI/GUV-I 203-077) and according to the guidelines IEEE 1584 and NFPA 70E.
|
SPECIFICATION |
ARC FLASH 1 |
ARC FLASH 2 |
|---|---|---|
|
Material |
Polycarbonate |
Polycarbonate |
| Weight | 294 g | 425 g |
| Optical Class | Class 1 | Class 1 |
| Arc Protection Class | GS-ET-29: Class 1 | GS-ET-29: Class 1 ASTM F2178: ATPV 12.0 cal/cm2 NFPA 70E: ARC 2 |
| Luminous transmittance NA | 88% | 42% |
| Colour rendering index | > 95% | > 95% |
| Protection against splashes of liquids | 3 | 3 |
| Protection against high-speed particles | Medium energy impact: (B) | Medium energy impact: (B) |
| Shelf Life | 10 years from date of manufacture. Product life may be affected if stored under conditions that could cause deterioration such as sudden temperature changes, exposure to direct sunlight and intensity of use. Altered vision and scratches are symptoms that signal the need to check for deterioration of the visor. |
|
