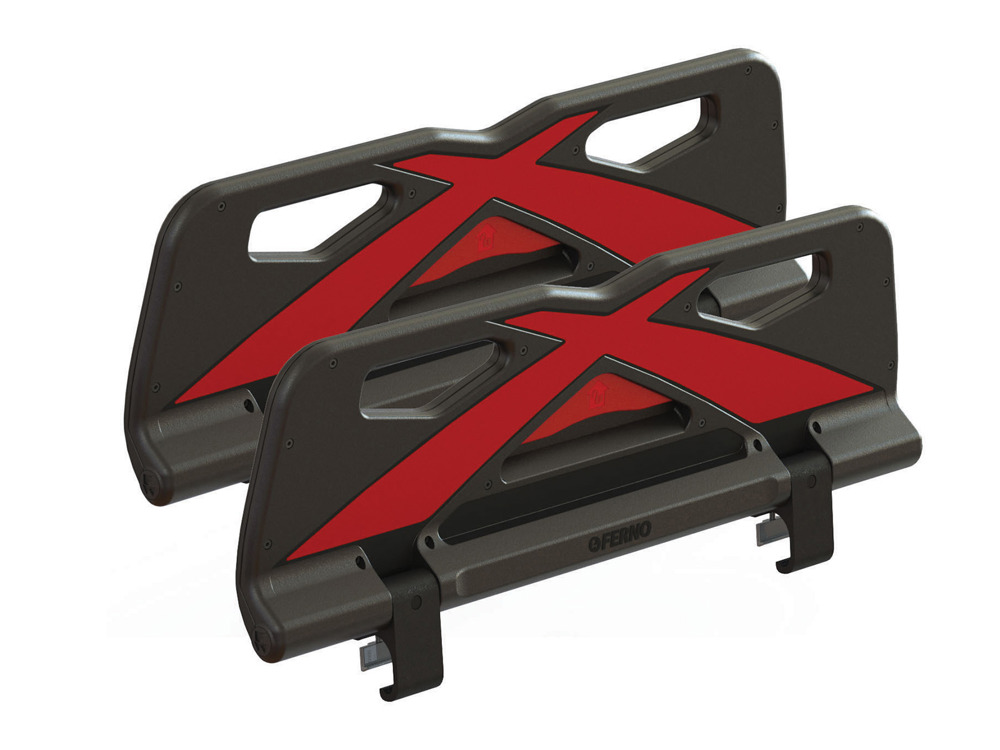

When attached to a Ferno® iN∫X Integrated Patient Transport & Loading System™ or Power-X, the Surface Xtender extends the width of the patient surface to accommodate a large patient.

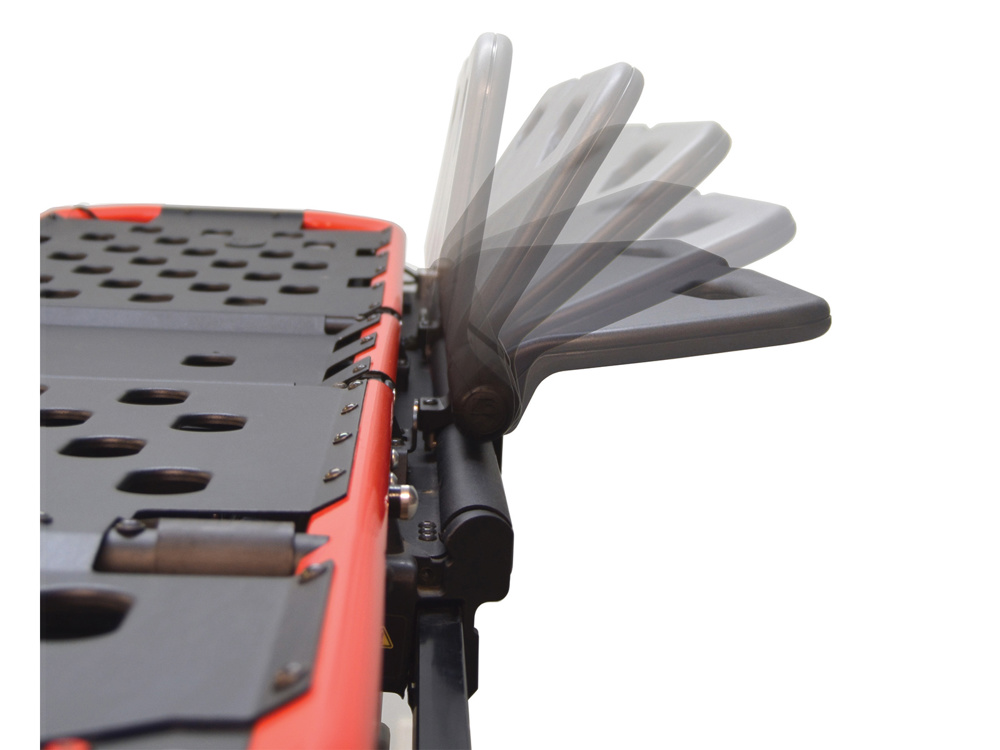

The panels adjust between five locked positions at approximately 15° intervals, plus an unlocked, lowered position. The unlocked position allows the SX to be positioned out of the way for patient transfer between the iN∫X, Power-X and another surface and does not interfere with loading and unloading.
The SX is not designed to carry the weight of the patient or as a transfer aide.
Features & Benefits
- Safety feature prevents the handle from being released when the SX is supporting weight
- Ratchets up through positions with no need to operate handle
- Two moulded-in hand holds to support patient weight when adjusting positions
- Low profile when folded down for unobstructed patient transfers
- Injection moulded panels for easy cleaning
- Recess below the red handle for custom branding/customer logo if desired
|
SX Specifications
|
|
|
Product Code
|
FWESX
|
| Compatible with |
iN∫X; PowerX |
| Length |
685 mm |
| Weight |
6.8 kg / pair |
| Working Load Limit |
100 kg |
| Compliance Standards |
EN 1789; SA3 J2917; SAE J2956; AS/NZS4535:1999; CE; RoHS-2 |
