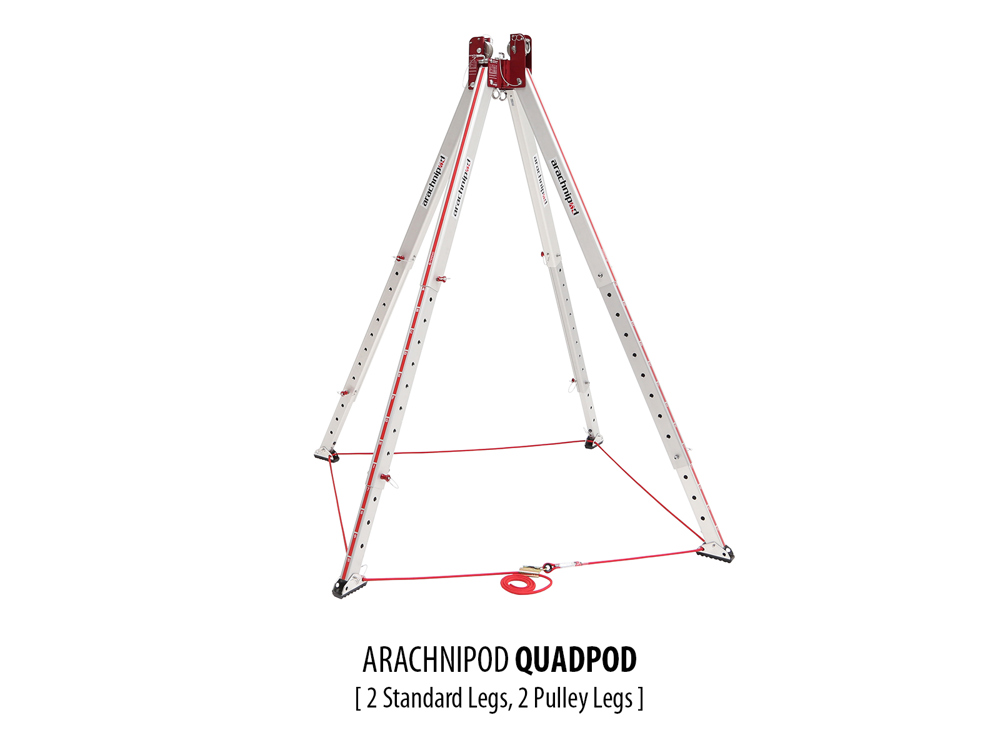

The Arachnipod Quadpod comprises two Standard Legs and two Pulley Legs. The system provides two load attachment points, four stabilisation rigging points, two double-grooved pulleys plus the versatility to configure additional technical systems.

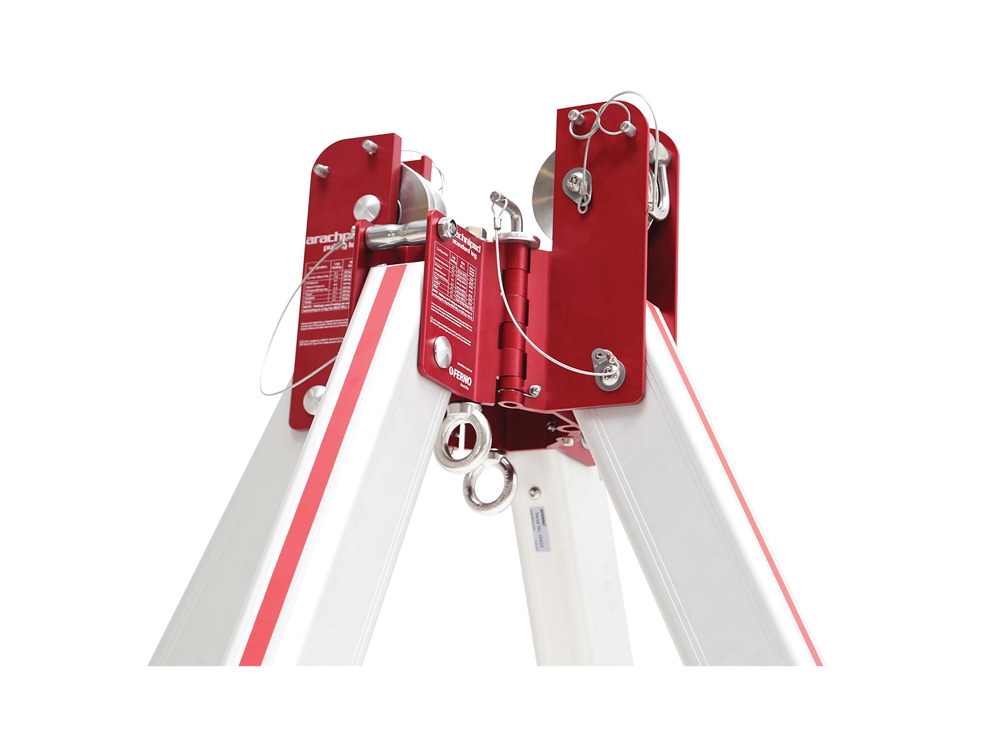

The Arachnipod's uniquely designed head system enables legs to be quickly disconnected from each other to store flat for compact storage and transportation. Each of the legs is supplied with an upgraded Standard Foot 2.

Features

• Rectangular, adjustable legs with leg pins
• Two stainless steel swivel eye bolt anchor points
• Two stainless steel double-grooved pulley accommodates 8mm steel wire rope and fibre rope up to 13 mm
• Each leg includes a stabilisation attachment point

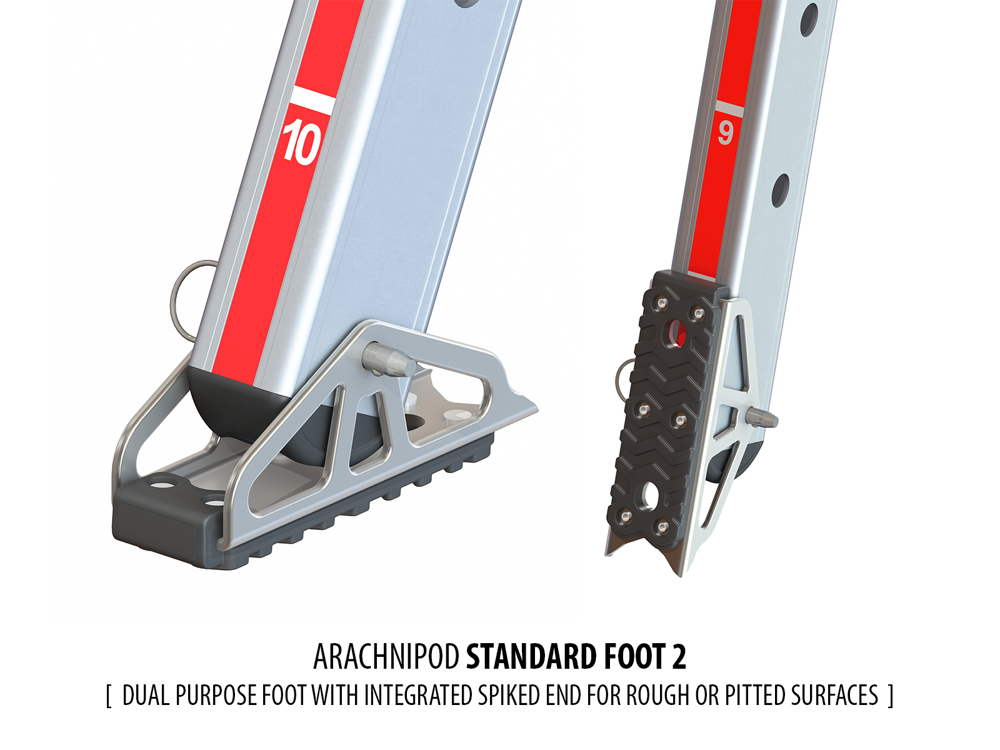

• Upgraded Standard feet suits both flat and uneven surfaces,  pivot to adjust to ground variations and  incorporate an aggressive non-slip tread pattern

In the Box

• 2 x  Standard Legs feature rated load attachment points that swivel 360 degrees, along with an additional D-shackle attachment point for stabilisation rigging
• 2 x  Pulley Leg incorporates a pulley designed to accommodate up to 13 mm fibre rope as well as up to 8 mm steel/stainless steel wire cable rope
• 1 x  Quad Plate (accessory)
• 1 x Feet Rope and Rope Grab
• 1 x Transport Bag

The Arachnipod Quadpod can be Configured into

• Tripod
• Quadpod (Quad Plate required - supplied)
• A-Frame (Rigging Plate required - sold separately)
• Sideways A-Frame (Rigging Plate - sold separately)
• Handrail Recovery Monopole

Downloads:

• Data Sheet:   Arachnipod Quad Pod, Standard Bridge and Total Edge Management System
• Compare Arachnipod Kits: Arachnipod Ready Reference
• Case Study: Arachnipod Solutions  |  Industrial Vat Access and Rescue
