Product Name: ZOLL X Series iNTRAXX Mounts
Ferno Product Code: 0480019*

Description Specifications

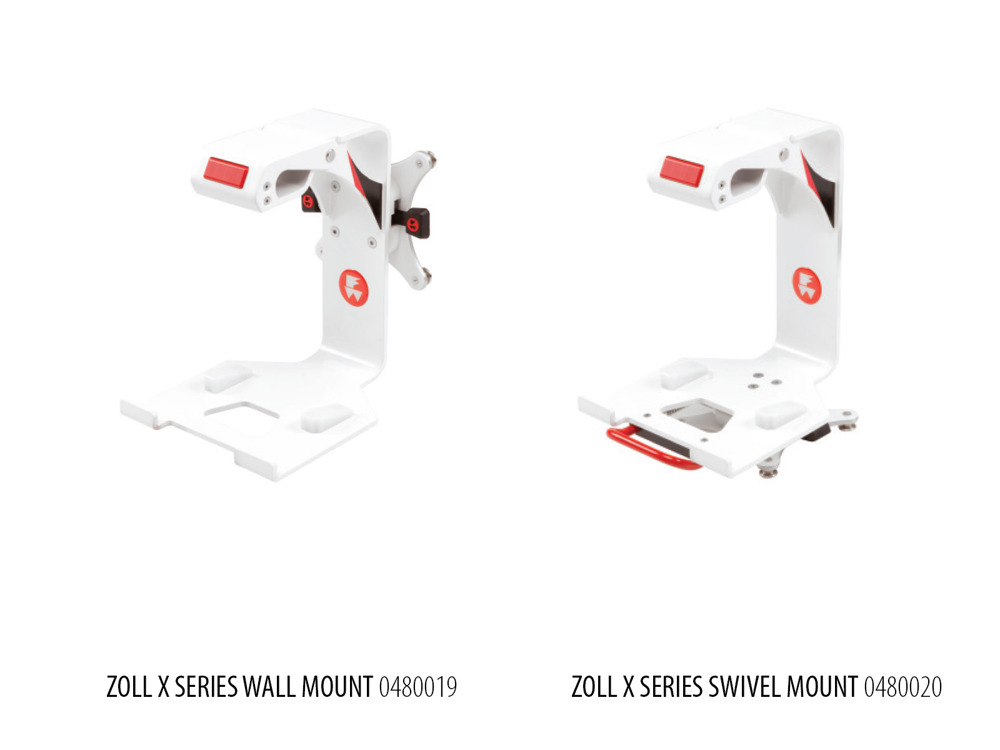

ZOLL X Wall Mount	Metric	Imperial
Part Number	0480019
Dimensions W x D x L	282 x 285 x 210 mm	11.1 x 11.2 x 8.3 in
Weight	5.6 kg	12.3 lb
Crash Tested	10g, 22g, 26g
Compatible with ZOLL X Soft Case including rear pouch

ZOLL X Swivel Mount	Metric	Imperial
Part Number	0480020
Dimensions W x D x L	342 x 265 x 210 mm	13.5 x 10.4 x 8.3 in
Weight	7.9 kg	17.4 lb
Crash Tested	10g, 22g, 26g
Compatible with ZOLL X Soft Case including rear pouch

ZOLL X Wall & Swivel Mount	Metric	Imperial
Part Number	0480021
Dimensions W x D x L	342 x 305 x 210 mm	13.5 x 12 x 8.3 in
Weight	8.8 kg	19.4 lb
Crash Tested	10g, 22g, 26g
Compatible with ZOLL X Soft Case including rear pouch

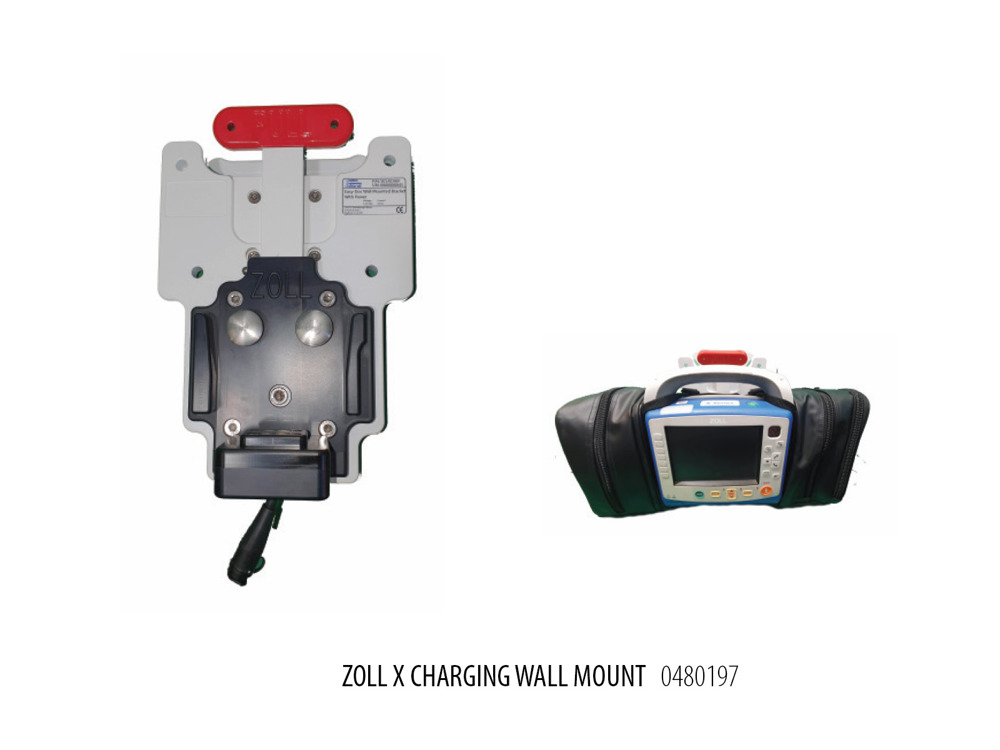

ZOLL X Charging Wall Mount	Metric	Imperial
Part Number	0480197
Dimensions W x D x L	210 x 300 x 160 mm	8.2 x 11.8 x 6.2 in
Weight	3.7 kg	8.15 lb
Load Capacity	12 kg	26.45 lb
Crash Tested	10g, 22g, 26g
Supplied as a kit including Zoll Mount, Zoll Charge Adapter plus bolts for attaching the unit to a Safemount (sold separately). Compatible Safemounts 0480010 or 0480146. ZOLL bag and unit not included.

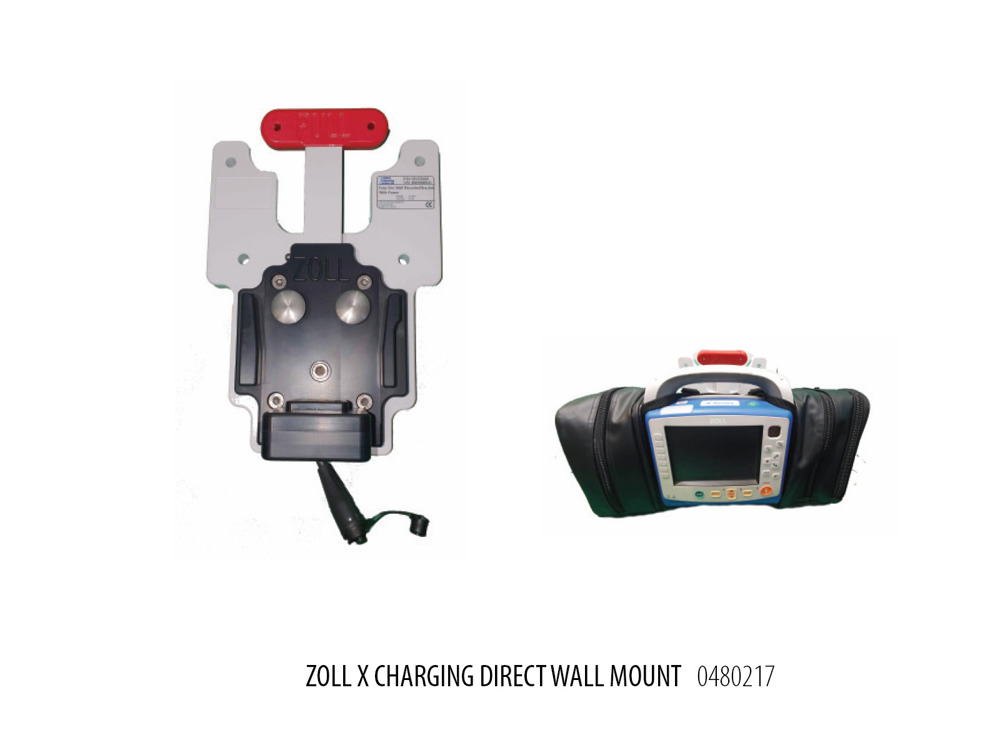

ZOLL X Charging Direct to Wall Mount	Metric	Imperial
Part Number	0480217
Dimensions W x D x L	210 x 300 x 160 mm	8.2 x 11.8 x 6.2 in
Weight	2.8 kg	3.9 lb
Load Capacity	12 kg	26.45 lb
Crash Tested	10g, 22g, 26g
Supplied as a kit including Zoll Mount, Zoll Charge Adapter plus bolts for attaching the unit to the wall Refer to separate user instructions. ZOLL bag not included.

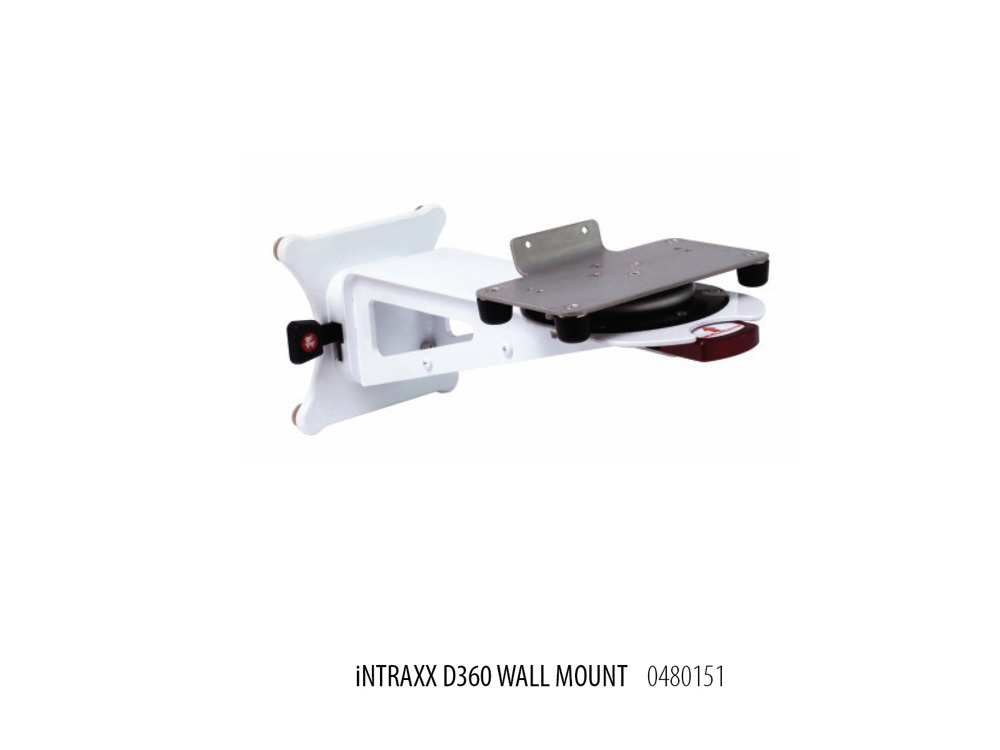

iNTRAXX D360 Wall Mount	Metric	Imperial
Part Number	0480151
Dimensions W x D x L	151 x 384 x 167 mm	5.9 x 15.1 x 6.6 in
Weight	1.8 kg	4 lb
Crash Tested	10g, 22g, 26g
Provides the platform for ZOLL or Hamilton T1 plus any aviation equipment that use the D360 system. Image displays the D360 with ZOLL Adaptor 0480156 (sold separately) which is required to fit the PD360 defibrillator.

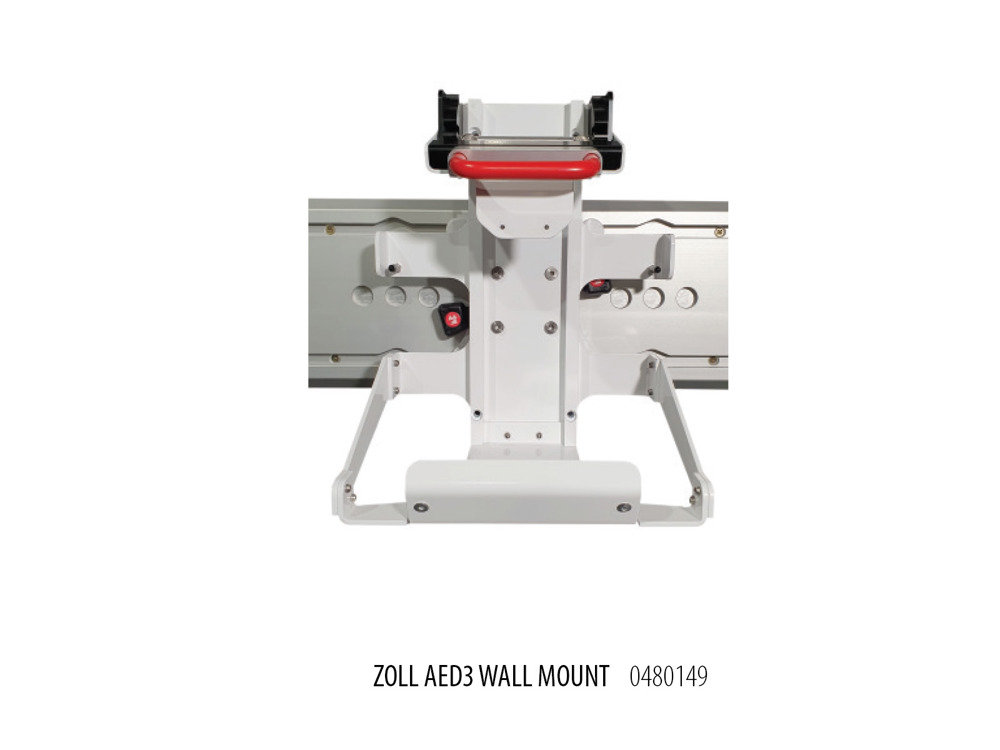

ZOLL AED3 Wall Mount	Metric	Imperial
Part Number	0480149
Dimensions W x D x L	312 x 229 x 260 mm	12.2 x 9 x 10.2 in
Weight	2.6 kg	5.7 lb
Load Capacity	3.5 kg	7.7 lb
Crash Tested	10g, 22g, 26g
Can be retained in the mount with or without the ZOLL AED case iNTRAXX track mount only May be supplied with a 360 degree swivel mount by special request Refer to separate customer drawings for mounting details Defibrillator not included

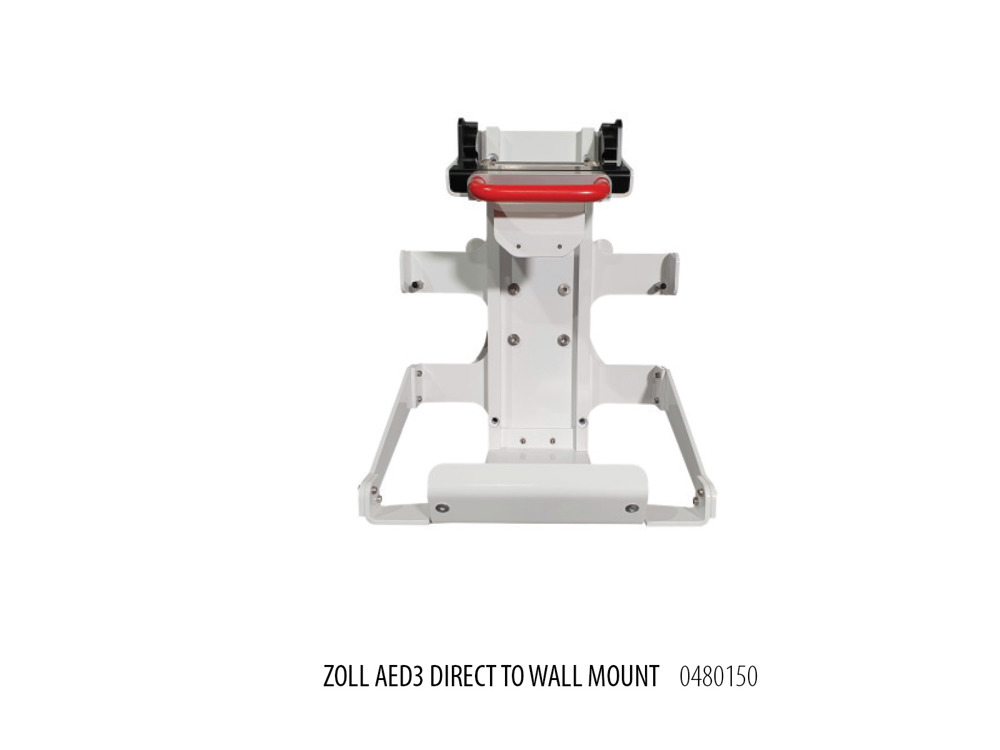

ZOLL AED3 Direct Mount	Metric	Imperial
Part Number	0480150
Dimensions W x D x L	312 x 191 x 260 mm	12.2 x 7.5 x 10.2 in
Weight	1.9 kg	4.1 lb
Load Capacity	3.5 kg	7.7 lb
Crash Tested	10g, 22g, 26g
Can be retained in the mount with or without the ZED case Direct to wall mount only May be supplied as a 360 degree swivel cabinet mount by special request Refer to separate customer drawings for mounting details Defibrillator not included
